Condenser Fan Motor Replacement and AC Diagnostic Done Right

A failing condenser fan motor is one of those problems that sneaks up on you. The system keeps running - sort of - but it can't move heat out of the unit the way it should. That leads to overheating, short cycling, and eventually a compressor failure that costs a whole lot more to fix.

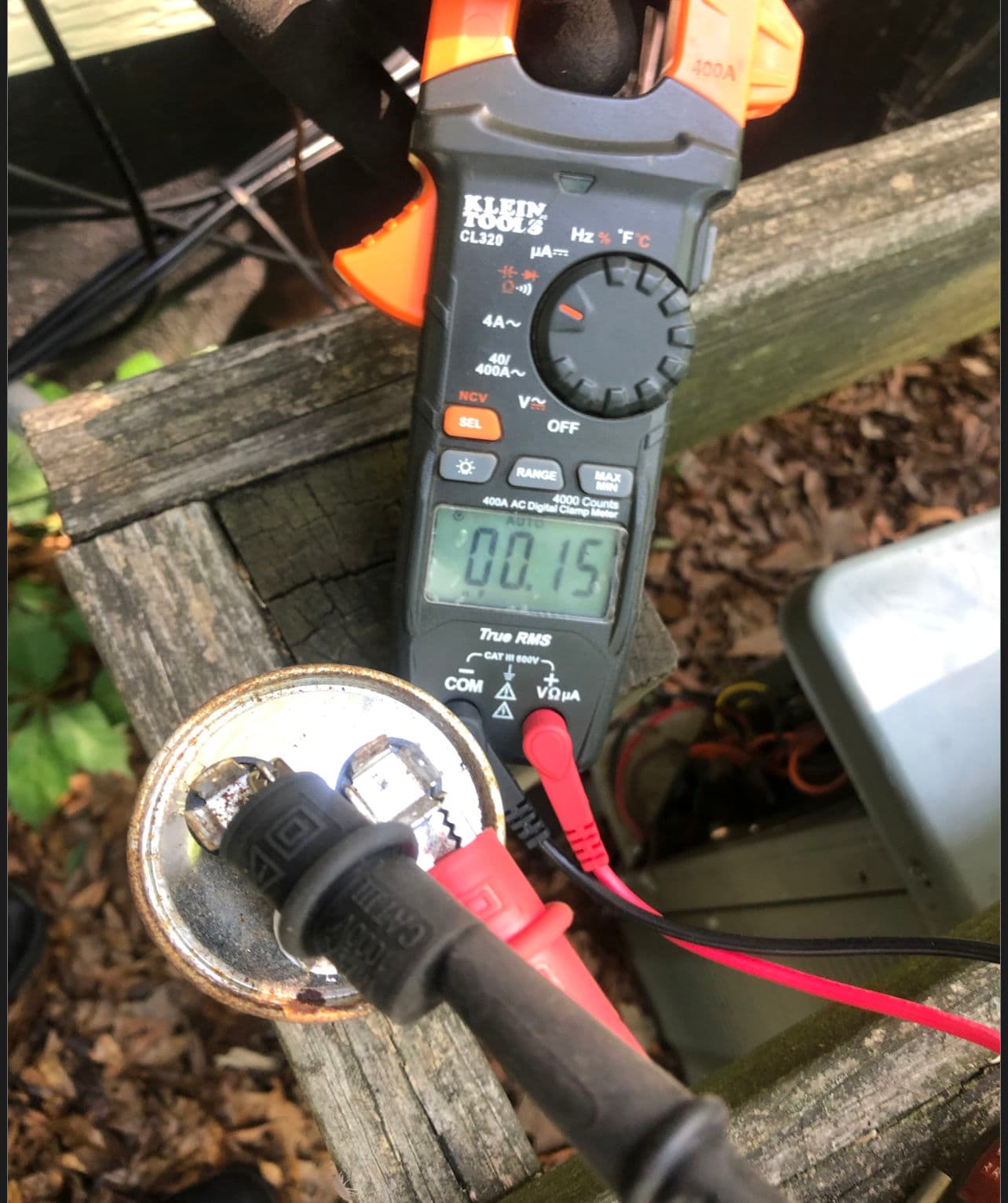

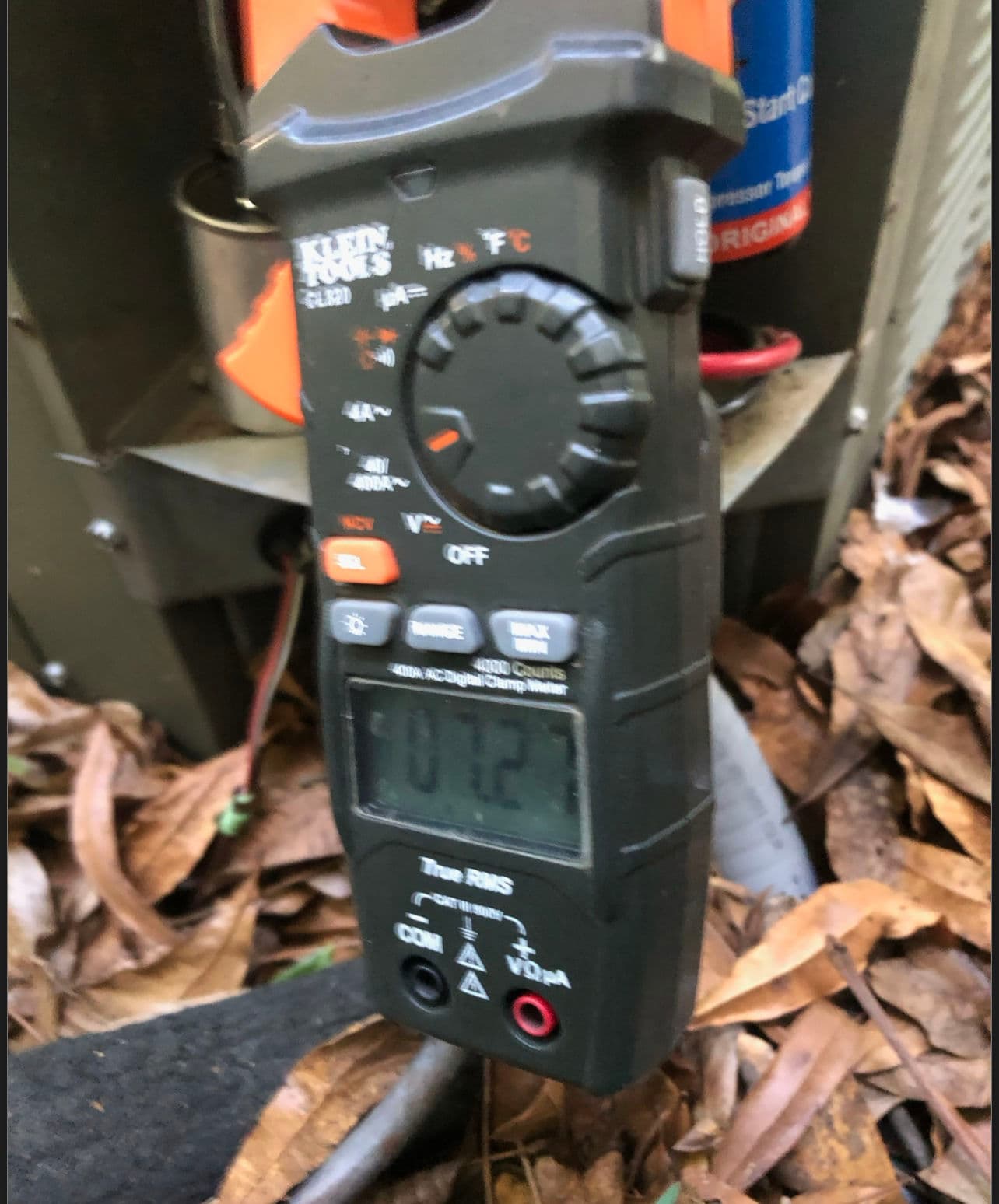

Here's what we were working with on this call. The outdoor unit was showing signs of a struggling fan motor - low amperage draw, a capacitor that was way out of spec, and a compressor that was working harder than it should. We pulled readings with the Klein CL320 clamp meter to get exact current draw on the motor and capacitor leads. Numbers don't lie, and they told us exactly what needed to happen.

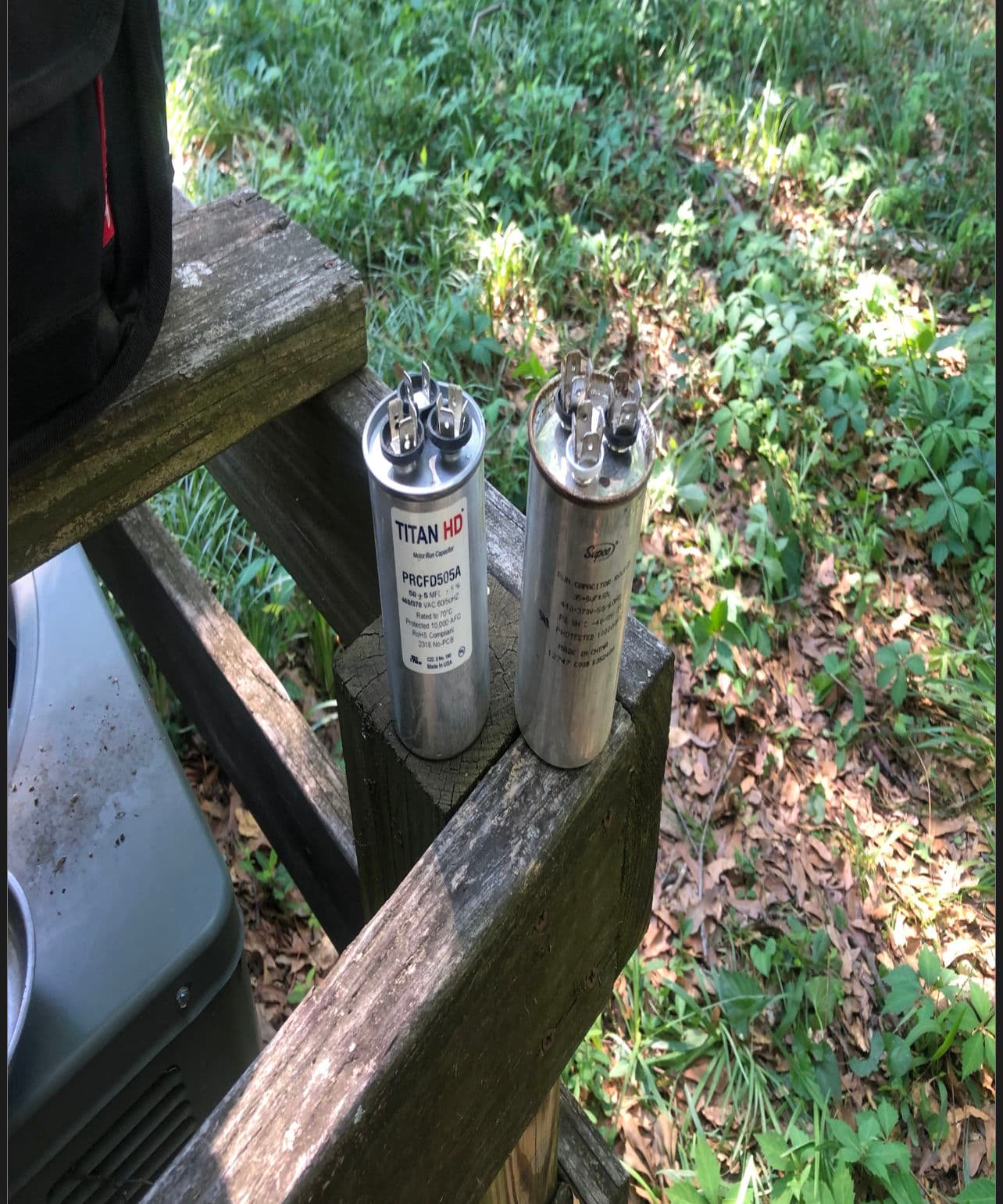

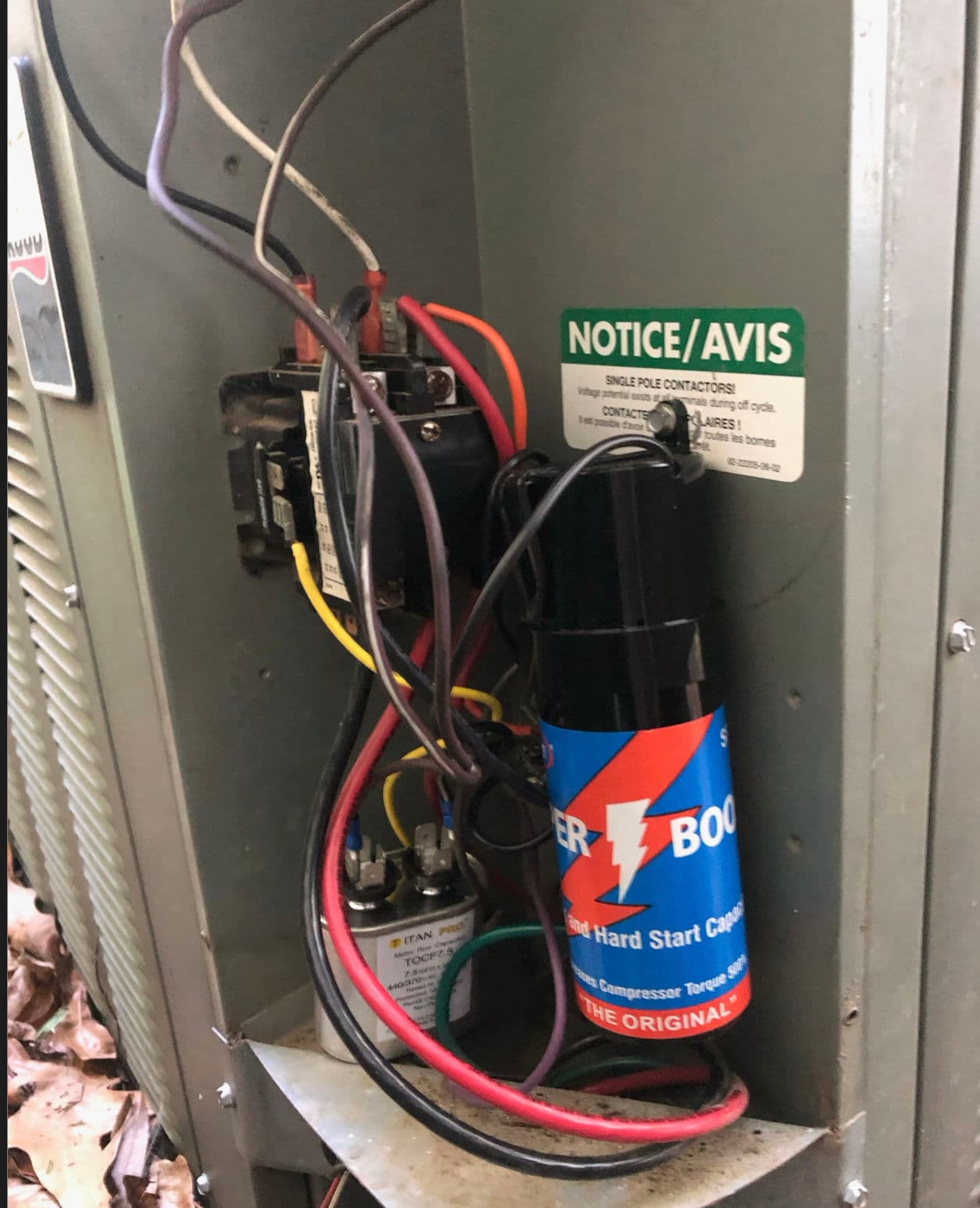

The old run capacitor was done. You can see the side-by-side comparison of the original and the replacement Titan HD unit - same form factor, but the original had clearly seen better days. We swapped it out, installed a hard start capacitor to take the load off the compressor at startup, and got the new fan motor seated and wired properly. Clean install, everything torqued down and secured.

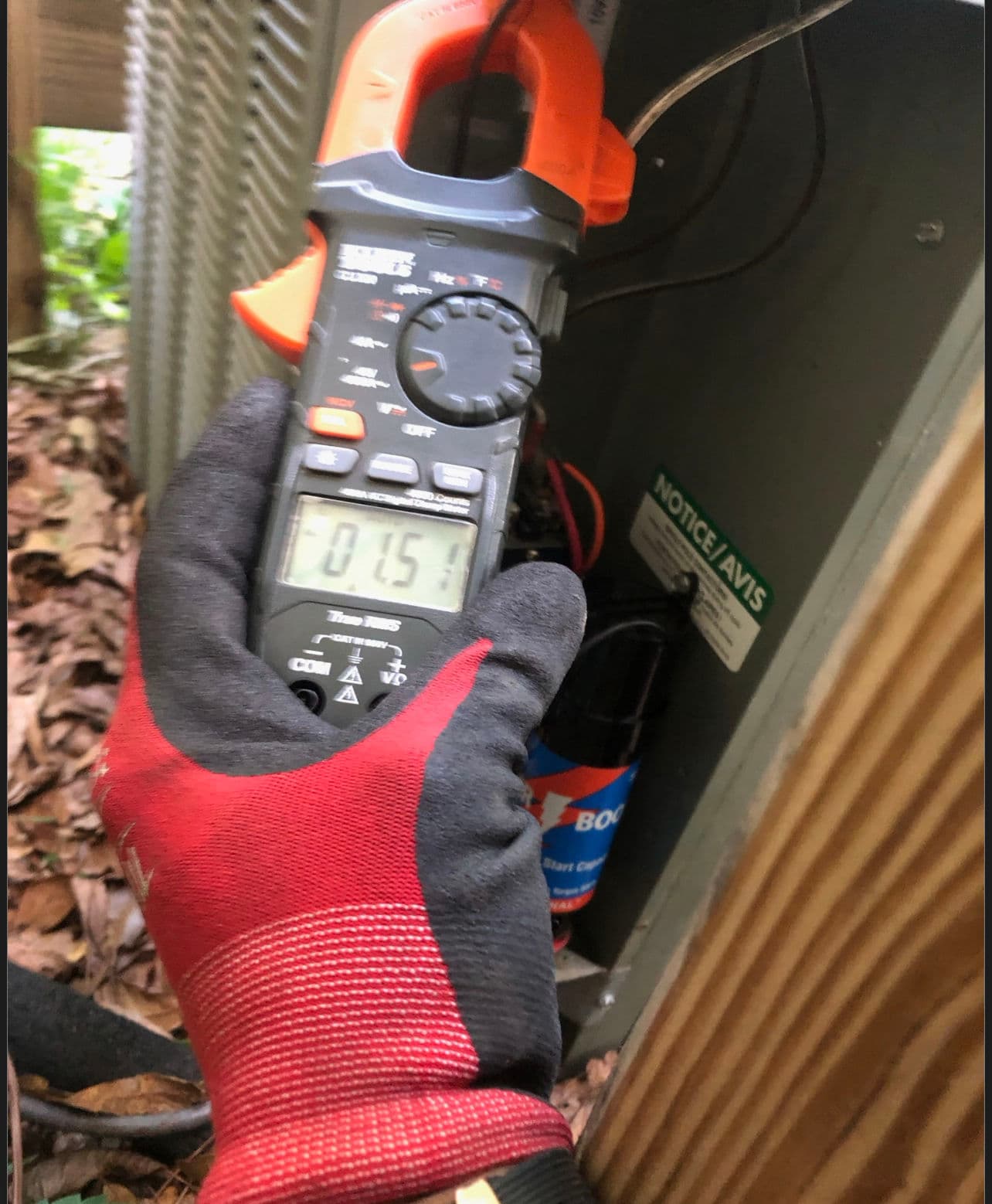

After the repair, we rechecked amperage draw across the motor leads. Readings came back where they needed to be. The system was moving air again and the compressor wasn't laboring. That's what a proper HVAC diagnostic looks like - you measure before and after, not just swap parts and hope for the best.

If your outdoor unit is humming, running hot, or just not keeping up with the thermostat, don't wait it out. A bad capacitor or failing fan motor is a relatively straightforward repair. Let it go too long and you're looking at compressor damage - and that's a completely different conversation.
