Liquid Line Filter Drier Replacement Protecting an AC System

A worn or clogged liquid line filter drier is one of those small components that quietly causes big problems. Most homeowners have never heard of it - but it sits right in the refrigerant circuit and its job is to catch moisture and debris before they can damage the compressor. When it gets restricted, refrigerant flow gets choked off and your system stops cooling the way it should.

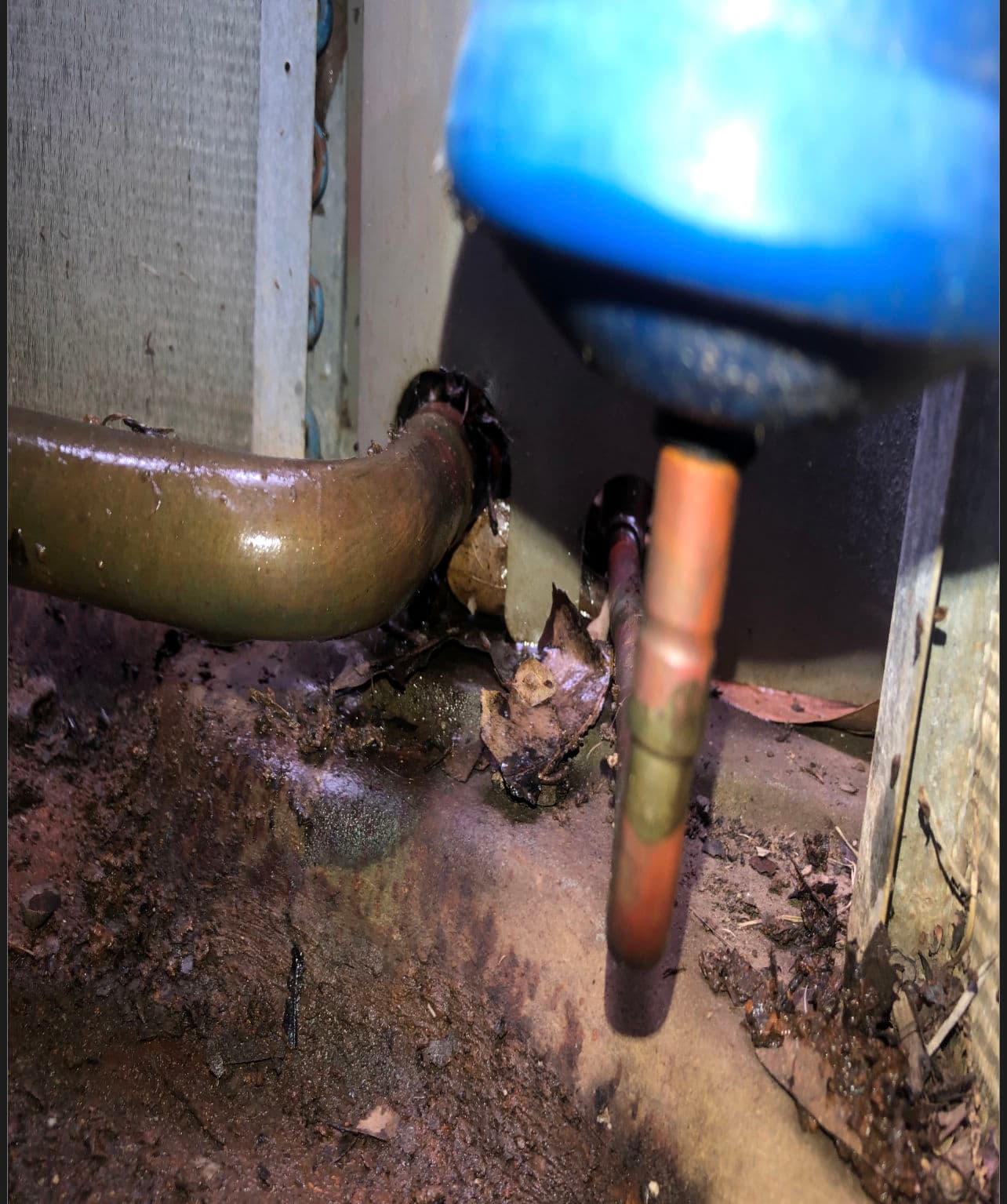

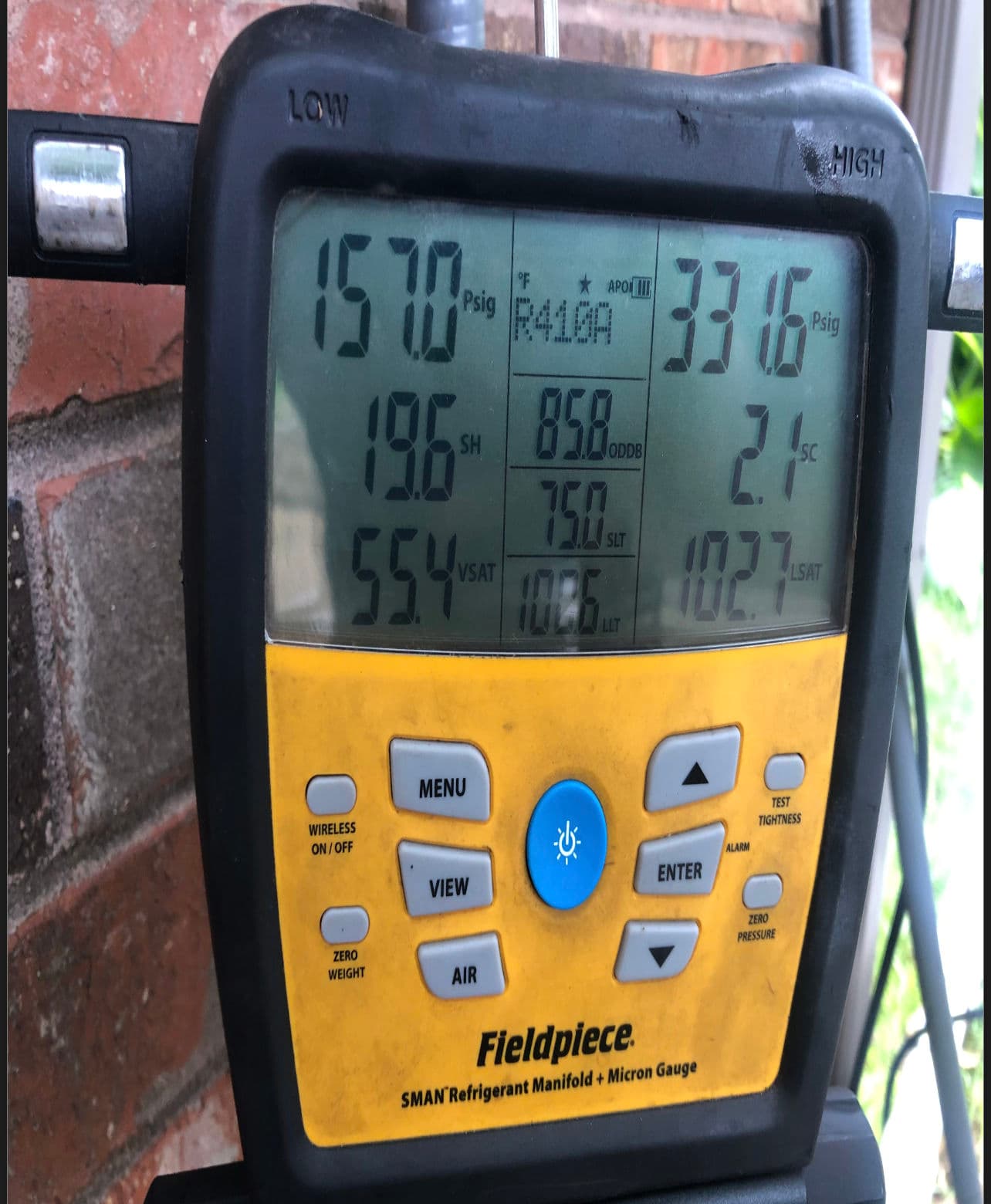

That's exactly what we were dealing with here. The old drier had seen better days, and the refrigerant circuit was telling the story. Using our Fieldpiece SMAN manifold gauge, we pulled real-time pressure and temperature readings across the system - 157.0 psig on the low side, 19.6 degrees of superheat, and a liquid line temperature sitting at 75.0 degrees. Those numbers helped us confirm what we suspected and make sure the repair was dialed in correctly before we wrapped up.

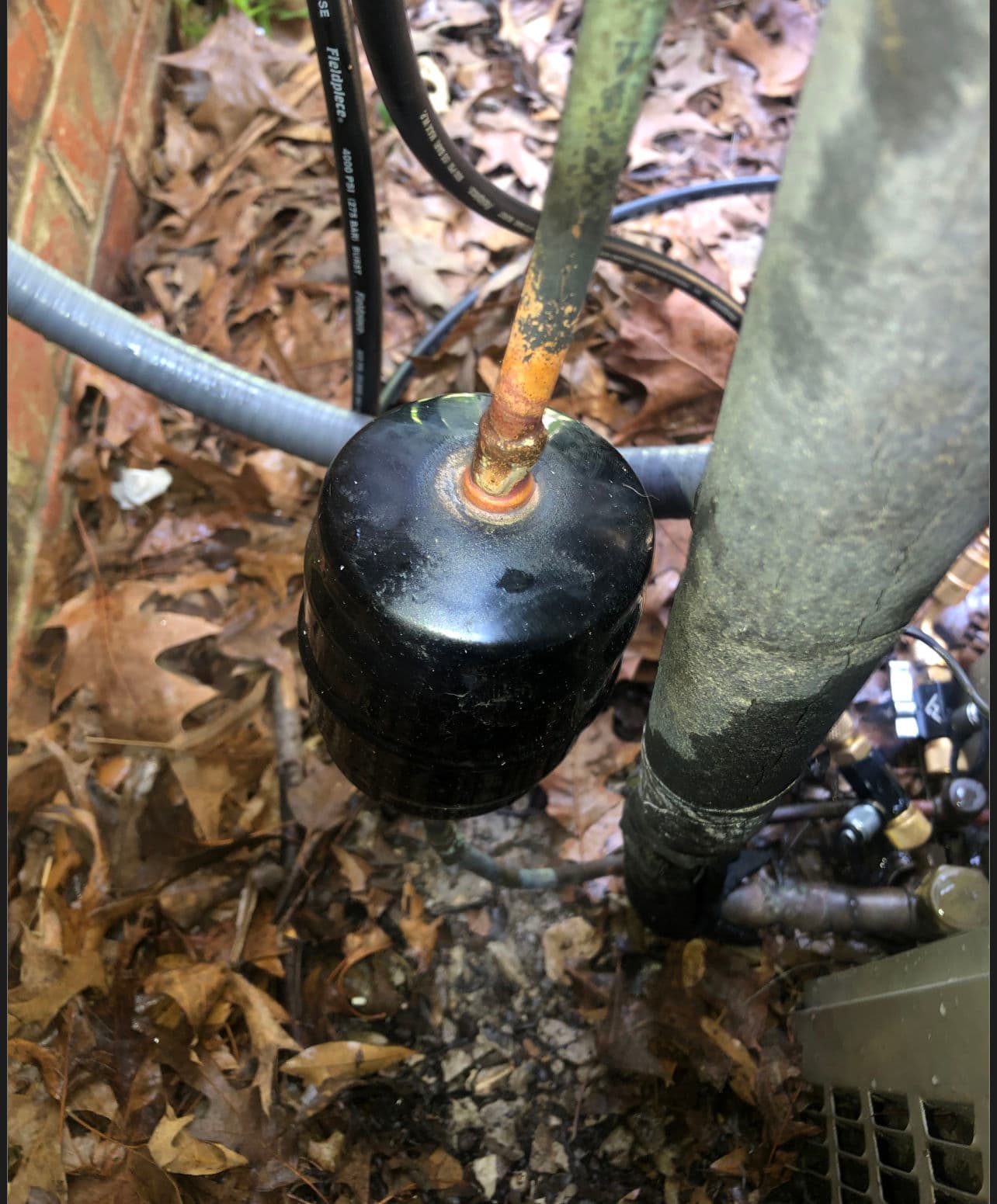

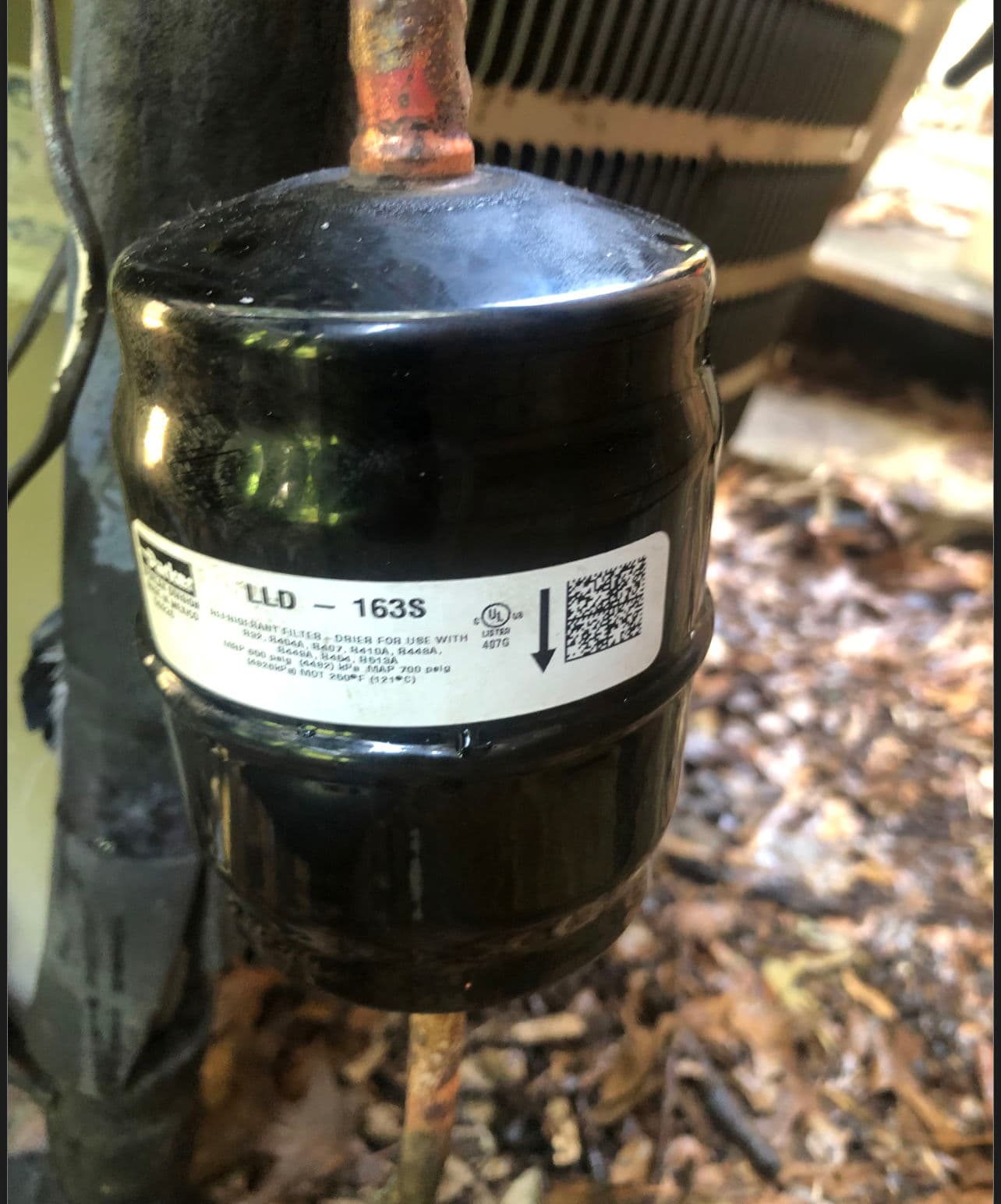

We swapped in a new filter drier - an LLD-163S rated for R-410A - and got everything brazed back in, leak-checked, and verified. It's a small part. The labor behind it is anything but. Between recovering refrigerant, cutting out the old drier, brazing in the new one, pulling a proper vacuum, and recharging the system, this is a multi-step process that requires the right tools and know-how to do correctly.

This kind of repair is a good example of what thorough HVAC system diagnostics actually look like. It's not just swapping parts - it's reading the data, understanding what it means, and fixing the actual cause of the problem. If your AC has been struggling to cool your home and you haven't had someone look at the refrigerant circuit, that's a good place to start.
