Low-Voltage Wiring Repair That Brought an HVAC System Back to Life

Low-voltage wiring doesn't get a lot of attention, but it controls everything - your thermostat signals, your system startup, your equipment talking to itself. When that wiring gets damaged, the whole system can act erratic or just stop responding altogether. That's exactly the kind of issue we were dealing with here.

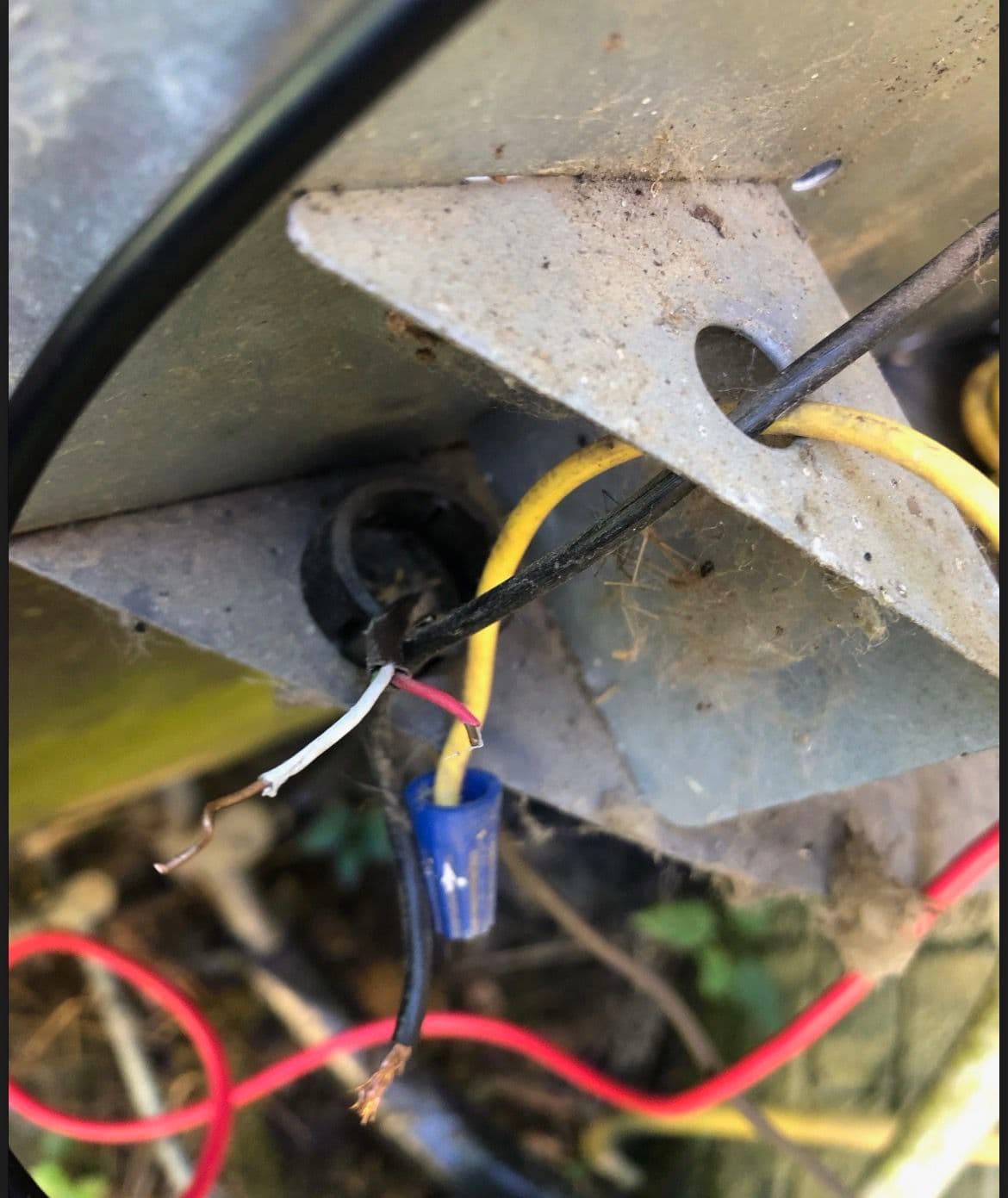

During diagnostics, we found damaged low-voltage wiring at the outdoor unit. The insulation on the control wiring had broken down, and the connections were in rough shape. Frayed wire ends, bad terminations - the kind of stuff that causes your system to short-cycle, throw error codes, or just refuse to kick on. We also checked the capacitor while we were in there. A worn-out capacitor is one of the most common reasons a compressor or fan motor won't start, so we always verify it during a thorough diagnostic.

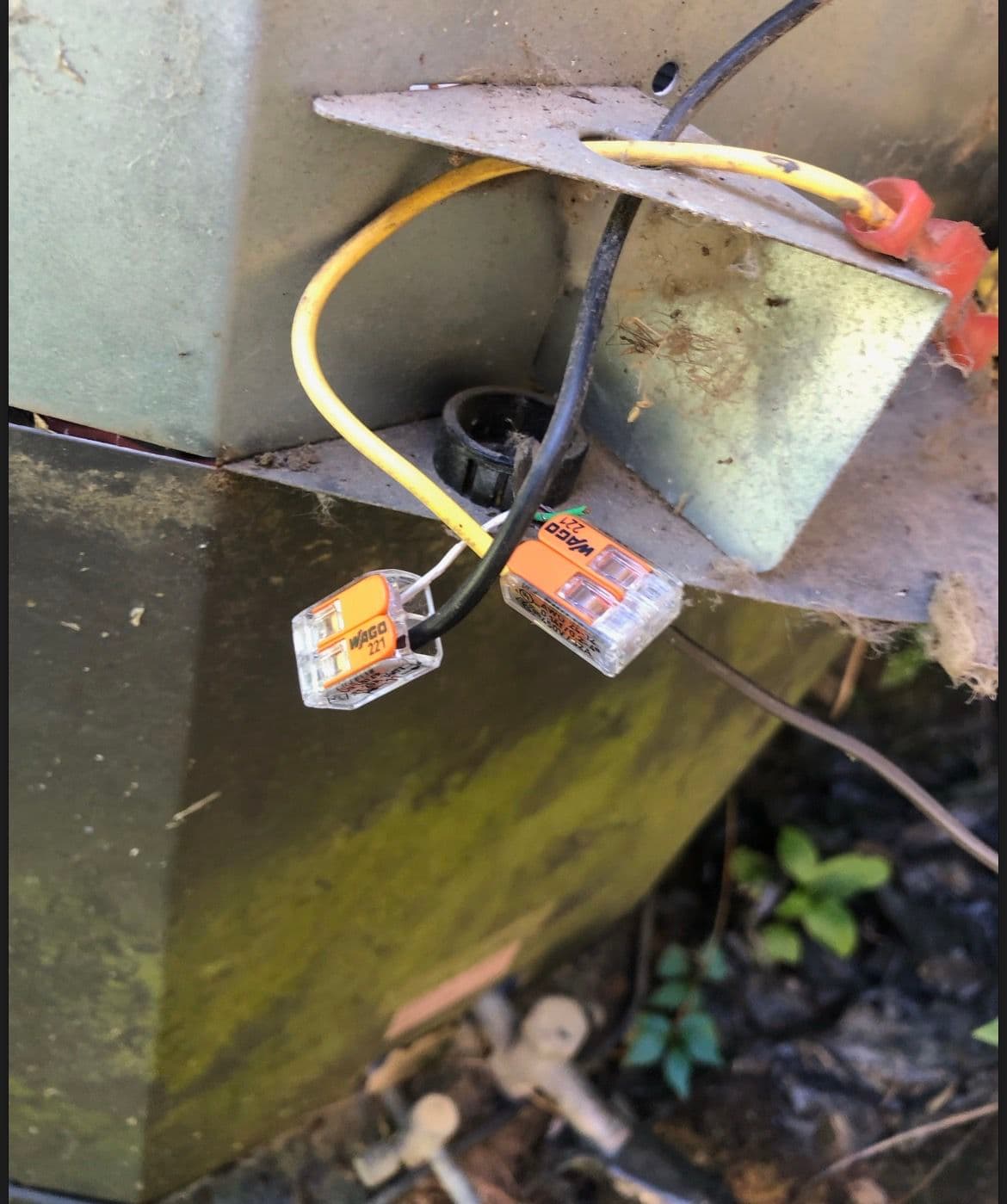

For the wiring repair, we used WAGO 221 lever-nut connectors. These are a step up from standard twist-on wire nuts. They create a solid, reliable connection that holds up against the vibration and temperature swings an outdoor unit deals with every day. No loose connections, no guesswork.

We take this kind of repair seriously because skipping steps or patching things the wrong way creates bigger problems down the road. A system that's wired properly runs safely and efficiently. One that's been jury-rigged is just waiting to fail again - usually at the worst possible time, like the middle of a Memphis summer.

If your system has been acting up - short-cycling, not cooling, or just behaving strangely - there's a good chance something in the electrical side needs a closer look. That's where a real diagnostic makes all the difference.
